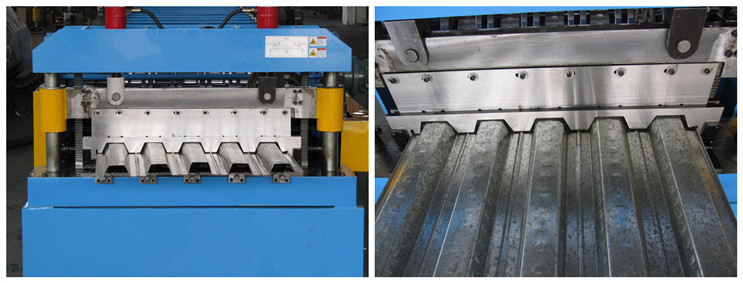

Steel Decking Roll Forming Machine
Main technical parameter:
1)   De-coiler:Passive open the coil,manual expansion
2)   Capability of de-coiler:5T
3)   Frame of machine: welding flange beam
4)   Form of guide feeding: side roller type
5)   Machine form: chain transmission (20A, double row)
6)   The diameter of main shaft:?90mm
7)   Power of main motor:22kw
8)   Working speed:0-15 m/min (not including cutting time)
9)   Roller station:28 steps
10) Material of roller:NO.45 steel, coating chrome
11) The surface of roller coating hard chromium: 0.05mm
12) Material of shaft: NO.45 steel, thermal refining
13) Power of hydraulic motor: 5.5kw
14) Hydraulic station pressure: 20Mpa
15) Oil pump of hydraulic station:gear pump
16) Cutter: hydroforming shear
17) The material of cutting blade:Cr12Mov
18) Quenching rigidity: HRC58-60°
19) Material thickness:0.7 -1.6mm
20) Feeding width:1250mm
21) Tolerance of length:±2mm
22) Controlling system: PLC frequency control
23) PLC: Panasonic
24) Encoder: Omron
25) Dimension:15500x1400x1300(mm)

Working process:
Passive open the coil→feeding panel with guide→roll forming→cutting with fixed length→output with supporter

Equipment including:
Passive de-coiler(5T)、forming machine、hydraulic cutting、hydraulic station、PLC computer control cabinet、output table
