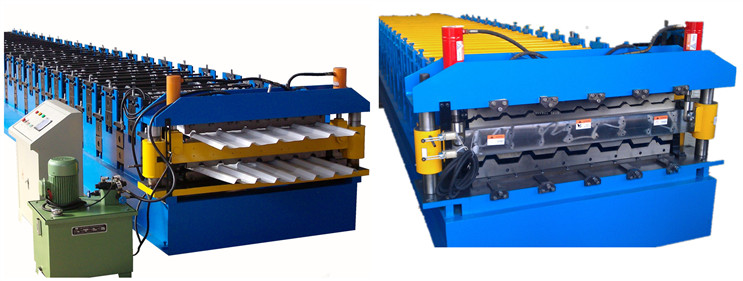

Double Layer Roll Forming Machine
Main parameter
1.  De-coiler: manual operation, passively de-coiling
2.  Loading of de-coiler: 5 T
3.  Frame of machine: welded with 350H beam steel
4.  Thickness of wallboard: 18 mm
5.  Guide feeding way of forming: side direction roller type
6.  Forming machine type: wallboard and chain drive
7.  Diameter of shaft: ¢76mm
8.  Chain: 16A single row
9.  Motor power of forming machine: 5.5KW
10.Line speed of forming machine: 18 m/min
11.Steps of forming machine: 16/20
12.Roller material: superior 45# steel forging
13.Thickness of Chrome plated on roller: 0.05mm
14.Hydraulic station motor: 4 KW
15.Hydraulic station oil pump: gear pump
16.Cutting way: cut off before/ after hydraulic shaped
17.Cutting blade material: Cr12
18.Cutting blade heat treatment: HRC58?-60
19.Rolling thickness: 0.3-0.8 mm
20.Feeding width: 1220mm
21.Precision of cut-to-length: ±2mm
22.Frequency changer : Tricrystal
23.Computer adopts PLC : Panasonic
24.Computer operation panel adopts touch screen
25.Voltage: 380V/50HZ, 3 phase
26.Dimension of machine: 7.8 M x 1.7 M x 1.5 M

Technological process
Passively de-coiling → Guiding & Feeding material → Roll Forming → Cutting-to-length → Output panel

Equipment configuration
Manual De-coiler(5T)、Main machine of roll forming、 Hydraulic forming cutter、Hydraulic station、PLC computer operation cabinet、Runout  table
