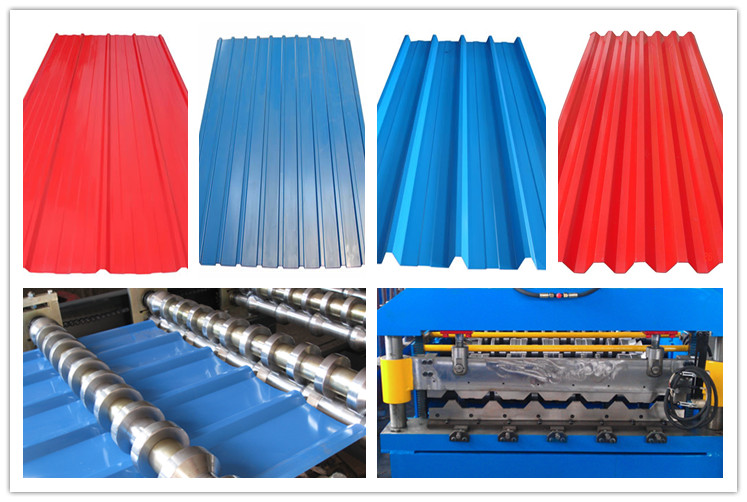

Flat Sheet Roll Forming Machine
Main parameter
1.  De-coiler: passively de-coiling
2.  Load-bearing of de-coiler: 5 T
3.  Frame of machine: welded with 350H beam steel
4.  Thickness of wallboard: 18mm
5.  Guide feeding way of forming: side direction roller type
6.  Forming machine type: wallboard and chain drive
7.  Diameter of shaft: ¢70mm
8.  Chain: 16A single row
9.  Motor power of forming machine: 5.5KW
10.Line speed of forming machine: 10-15m/min
11.Steps of forming machine: 18
12.Roller material: superior 45# steel forging
13.Thickness of Chrome plated on roller: 0.05mm
14.Hydraulic station motor: 4 KW, pressure: 8-12Mpa
15.Hydraulic station oil pump: gear pump
16.Cutting blade material: Cr12
17.Cutting blade heat treatment: HRC58?-60
18.Rolling thickness: 0.3-0.8 mm
19.Feeding width: 1000mm
20.Precision of cut-to-length: ±2mm
21.Electrical control system: Computer adopts PLC (Panasonic)
22.Voltage: 380V, 50Hz, 3 Phases.
Technological process
Passively de-coiling → Guiding & Feeding material → Roll Forming → Cutting-to-length → Output panel
Equipment configuration
Normal manual De-coiler (5T);
Main machine of roll forming;
Hydraulic forming cutting;
Hydraulic station;
PLC computer operation cabinet;
Run-out  table
