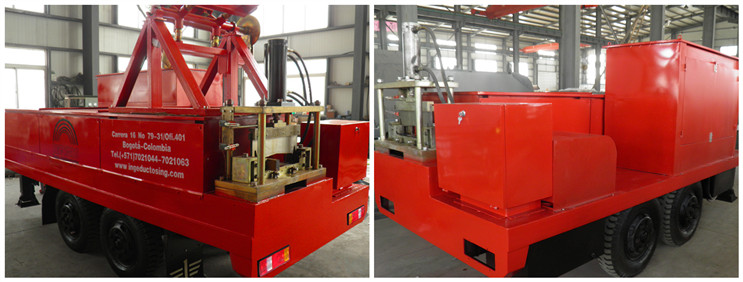

Home > Products center > KR24 Roll Forming Machine
Main technical parameter
1. Chassis: 250mm U-steel structural steel welding
2. Forming type: chain drive
3. Diameter of axle: ¢65mm
4. Chain:16A
5. Forming motor power:5.5kw
6. Forming speed:8-15m/min
7. Forming rollers:12 steps
8. Roller material:45#steel, coated hard chrome
9. Thickness of coated hard chrome:0.05mm
10.  Hydraulic station motor:3kw
11.  Hydraulic oil pump:gear pump
12.  Cutting type:hydroform cutter
13.  Material of cutting part:Cr12,heat treatment HRC58°-60°
14.  Thickness of coils:0.5-1.3mm
15.  Length scale precision:±2mm
16.  Transducer: YASKAWA
17.  Controlling system: PLC ,touch screen
18.  Power:220V 60HZ 3 phase,15KW electric generator
19.  Size:5500mmx1500mmx2000mm
20.  Weight:5 tons
