The drawing of BH-914-700
|
Main Technical Specification: |
|
Size: 8900mm × 2230mm × 2300mm |
Total Weight: about 15000KG |
|
Total MotorPower:17.9KW |
|
Bending power: 3.0kw+1.1kwx2; Sewing power: 2.2kw |
Cutting power: 3.0kw;
Forming power: 7.5kw |
|
Working Speed: Straight sheet: 15m/min
Arch sheet: 13m/min
Sewing: 16m/min |
|
Feeding Width: 914mm |
Effective Width: 700mm |
|
Step of rollers: 14 steps |
Controlling system: PLC&Manual |
|
Material of cutting blade: Cr12 moV |
Sheet operating factor: 76.6% |
|
Thickness of the coil: 0.6-1.5mm |
Material of roller shaft: 45# steel, galvanized |
|
Material of rollers: 45# steel, quenched with hard chrome |
Type of cutting: Roll-formed and length-set cutting |
|
Electric Standard : 380V / 50 HZ / 3 PHASES |
The depth of the groove:123mm |
|
Proper span: ≤22m |
Ship Container: 40’HQ x 1 |

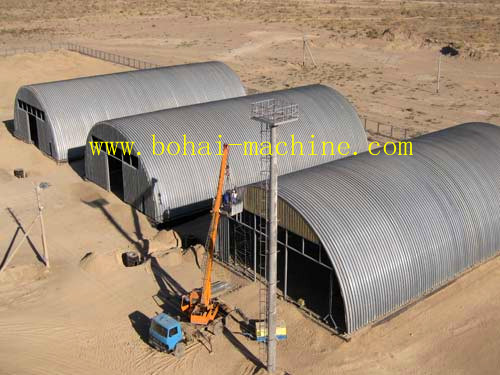

Our arch sheet roll forming machine can directly be produced on worksite, effectively lowing the cost. The project is widely used in large-scale and mid-scale industrial construction, such as factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre and so on.
|
